該閥是根據建材、礦山、冶金等行業中對中、小固體塊狀物料的給料、輸送、控制等工藝的要求而研制的一種新型閥門，適用于≤50mm物料的輸送控制。
The valve is the new type valve designed according to the technologic request of feeding, carrying and controlling the middle and small solid blocky material in building material, mining, metallurgy industries etc. It is suitable to be used to control carrying ≤50mm material.
結構特點：
Structure characteristic:
采用優質型鋼焊接，結構簡單、易操作、無卡阻、剛性強、不變形、使用壽命長、基本無維修量。是中、小固體塊狀物料控制的理想設備。
The valve is welded in fine steel, having the features of simple structure, easy to operate, not obstructive high strength, no distortion, long life and no maintenance. It is the ideal equipment of controlling the middle and small solid block material.
性能參數：
Performance parameter:
適用介質 Suitable medium | 適用溫度 Suitable temperature |
Φ50mm以下的顆粒物料 Grain material less than 50mm | ≤300℃ |

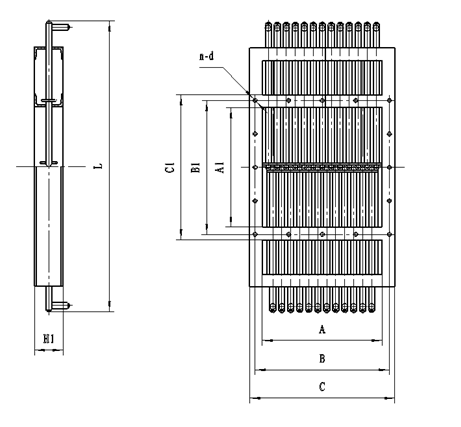

外形圖：
Appearance figure:
外形連接尺寸：
Appearance joint dimension:
A×A1 | B×B1 | C×C1 | n-d | H1 | L |
600×600 | 660×660 | 716×716 | 16-Φ16 | 140 | 1400 |
800×800 | 870×870 | 920×920 | 20-Φ18 | 140 | 1800 |
1000×1000 | 1074×1074 | 1130×1130 | 24-Φ18 | 160 | 2200 |
2000×1070 | 2072×1144 | 2130×1200 | 44-Φ18 | 160 | 2340 |
1500×870 | 1575×945 | 1636×1006 | 34-Φ18 | 180 | 1940 |
2000×870 | 2072×942 | 2130×1000 | 40-Φ18 | 160 | 1940 |
2000×1470 | 2080×1550 | 2150×1620 | 46-Φ18 | 200 | 3140 |
300×300 | 356×356 | 396×396 | 8-Φ12 | 100 | 760 |
450×450 | 512×512 | 556×556 | 16-Φ16 | 120 | 1100 |
500×500 | 560×560 | 606×606 | 16-Φ16 | 120 | 1180 |
600×600 | 660×660 | 706×706 | 16-Φ16 | 120 | 1400 |
1800×600 | 700×1900 | 750×1950 | 20-Φ18 | 180 | 1420 |
2500×500 | 2600×600 | 2650×650 | 50-Φ18 | 180 | 1220 |
4200×1200 | 4300×1300 | 4360×1360 | 66-Φ18 | 250 | 2600 |
3000×800 | 3100×900 | 3150×950 | 72-Φ18 | 200 | 1400 |
1000×600 | 1080×680 | 1130×730 | 10-Φ18 | 160 | 1400 |
2200×1200 | 2300×1300 | 2350×1350 | 60-Φ18 | 200 | 2600 |
2000×600 | 2072×672 | 2130×730 | 36-Φ18 | 160 | 1400 |
1000×800 | 1100×900 | 1150×950 | 30-Φ18 | 180 | 1820 |
1000×600 | 1056×660 | 1120×760 | 18-Φ18 | 140 | 1400 |
1000×350 | 1072×420 | 1120×470 | 22-Φ18 | 140 | 900 |
1000×600 | 1056×660 | 1120×760 | 18-Φ18 | 140 | 1400
|
1000×350 | 1072×420 | 1120×470 | 22-Φ18 | 140 | 900 |
A×A1 | B×B1 | C×C1 | n-d | H1 | L |
600×600 | 660×660 | 706×706 | 16-Φ18 | 120 | 1400 |
1200×1200 | 1280×1280 | 1340×1340 | 32-Φ18 | 180 | 2600 |
900×900 | 980×980 | 1040×1040 | 24-Φ18.5 | 180 | 2000 |
2400×1200 | 2484×1280 | 2540×1340 | 40-Φ18.5 | 180 | 2600 |
2400×900 | 2484×980 | 2540×1040 | 34-Φ18.5 | 180 | 2000 |
2400×1350 | 2484×1440 | 2540×1490 | 36-Φ18.5 | 180 | 2900 |
工作原理：
Working principle:
棒條閥一般為常開型，物料處流通狀態。根據工況需要切斷或調節時,需逐個插入棒條，以阻止物料流通，也可根據工況需要通過調整棒條間的間隙來控制物料的大小。
The valve is the opening type. The material is in the state of circulation. When it needs to be cut off or adjusted according to the working condition, the grid stick must be inserted one by one to prevent the material from circulating. In order to control the size of the material, adjusting the clearance of the grid stick according to the working condition also can be adopted.
使用說明：
Usage explanation
l 安裝時兩法蘭連接時必需加密封墊片，然后均勻鎖緊螺栓。
l 運行時不得對抽出的棒條進行猛烈撞擊，以免棒條變形無法復位。
l 切斷流通塊料時，必須從兩邊依次插入棒條。
l 若長期存放，不允許露天存放或堆置。
l Add seal cushion between two flanges connection and screw down bolt
l Prevent the grid drawn out from hard bumping in order to avoid distortion.
l Insert the grid stick from both sides one by one when cut off passing block material.
l When valve is long stored, it should not be placed or piled up in the open air.
訂貨須知:
Information for order:
l 選用訂貨時，請參照產品樣本注明產品規格、型號、客戶選用電裝代號及技術參數（使用溫度、設備工況、介質性質等）。
l 樣本所示產品圖例及表格中所列電動裝置號為我公司基本普通配置，不帶任何相關配件。您若有特殊要求（防爆、戶外、調速、調頻）另行配置電動裝置，請參照樣本附錄中相應電裝配置說明，標注在基本型號后面。
l 表格中未列規格、用于特殊介質或其它特殊要求，請與我公司經銷部、技術部聯系，可為您另行設計、制造。
l Please indicate the type, model and technical parameter (using temperature, working condition of equipment and characteristic of medium etc) referring to the product sample when you place an order.
l Product legend in the sample and electric device listed in table is the basic normal collocation of our company without any corresponding accessory. If you have especial demand (anti-explosion, outdoors, timing and frequency modulation type etc), please refer to the explanation of corresponding actuator code in the sample appendix and indicate it below the basic model.
l If you have other special demand, need special medium or the spec that is not listed in the table, please contact with our department of market and technology. We can design and manufacture for you especially.
